RSL Sliding Magnetic Blind Controller

Replacement Operator for RSL Blinds Between Glass (BBG)

We offer all three RSL Blind Operator styles. Please check the pictures below carefully and make sure you select the operator that matches yours.

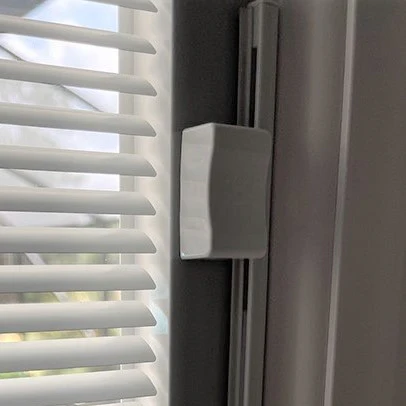

Single Operator - Side Facing "U" Channel

One controller raises, lowers, and tilts the blinds.

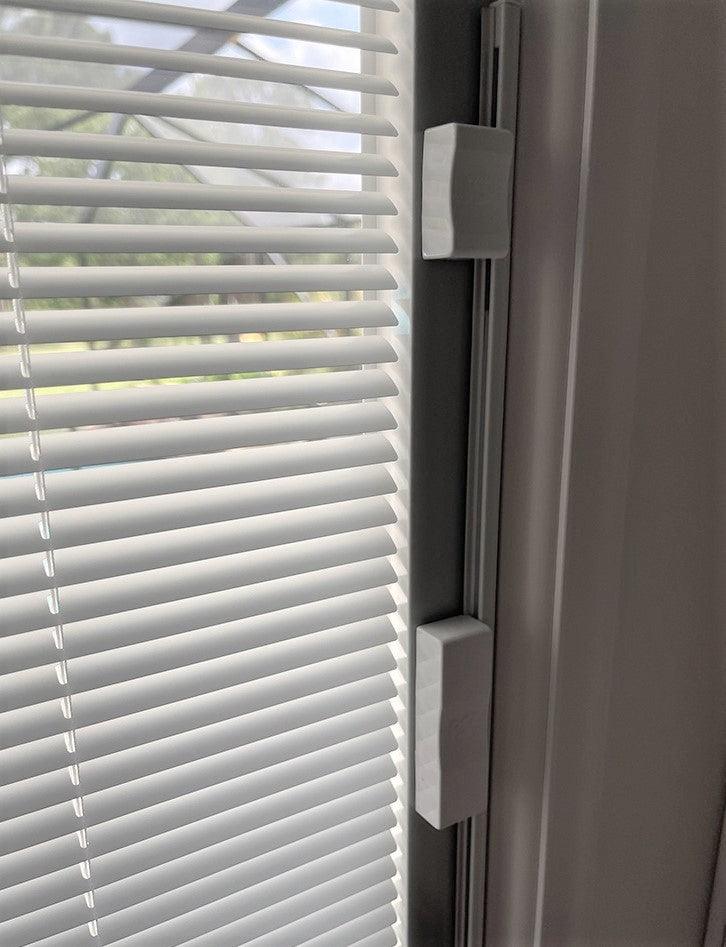

Double Operator 1 - Side Facing "U" Channel

Set of two controllers, a "Tilt Operator" or smaller one that adjusts the tilt and a larger "Main Operator" (same as single operator above) that raises and lowers the blinds. Note the side facing "U" channel that both operators fit into.

Double Operator 2 - Front Facing "U" Channel DISCONTINUED - purchase new insert

Set of two controllers, a smaller one that adjusts the tilt and a larger one that raises and lowers the blinds. Note the front facing "U" channel that both operators fit into. This style has been discontinued and we recommend to replace the glass and frame kit insert.

Installation Instructions

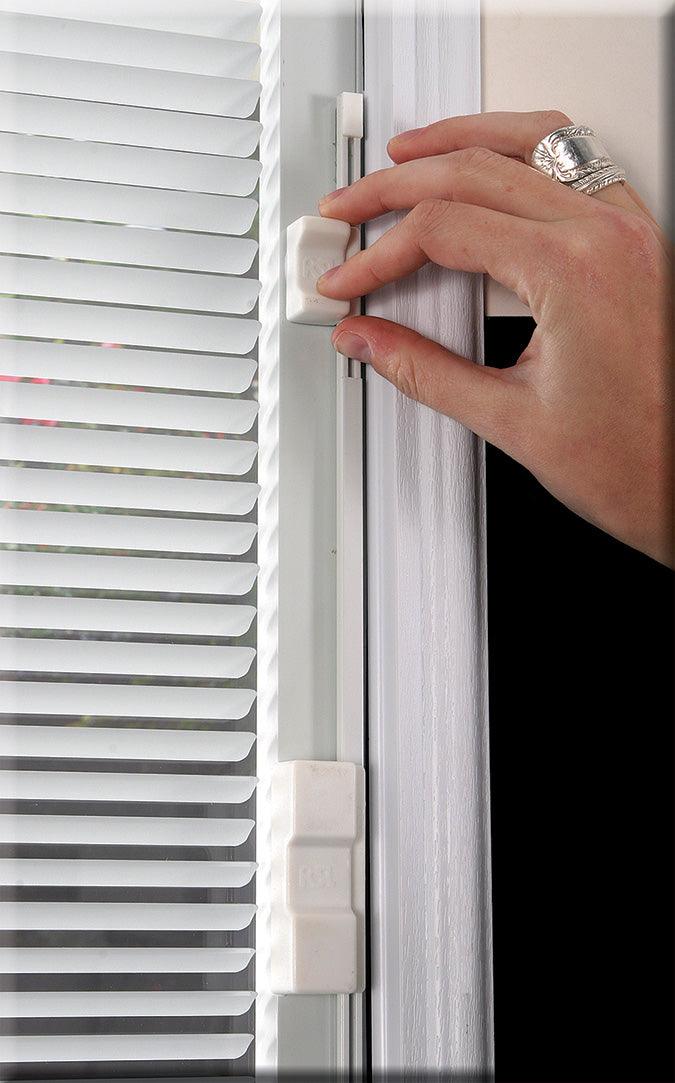

Hold the white track firmly against the glass above and below the operator. Gently twist the operator by hand or with pliers towards the edge of the glass until it comes loose. Discard the operator. Now install the replacement by easing the lip of the operator into the track opening and snapping sideways to attach. Test the new operator by tilting open/closed several times and then leave in the open position. Please remember to ALWAYS raise and lower the blinds in the open position.
